|AI-HUB| AI Navigation Learning Suite (With Textbook) - Control Robotic Arms with AI Vision, Voice, and Gesture, Arduino

Regular price
£781.00 GBP
Regular price
Sale price
£781.00 GBP
Sku: WL-AC-AIDS-2560

WLKATA |AI-HUB| AI Navigation Learning Suite

Shipping Overview

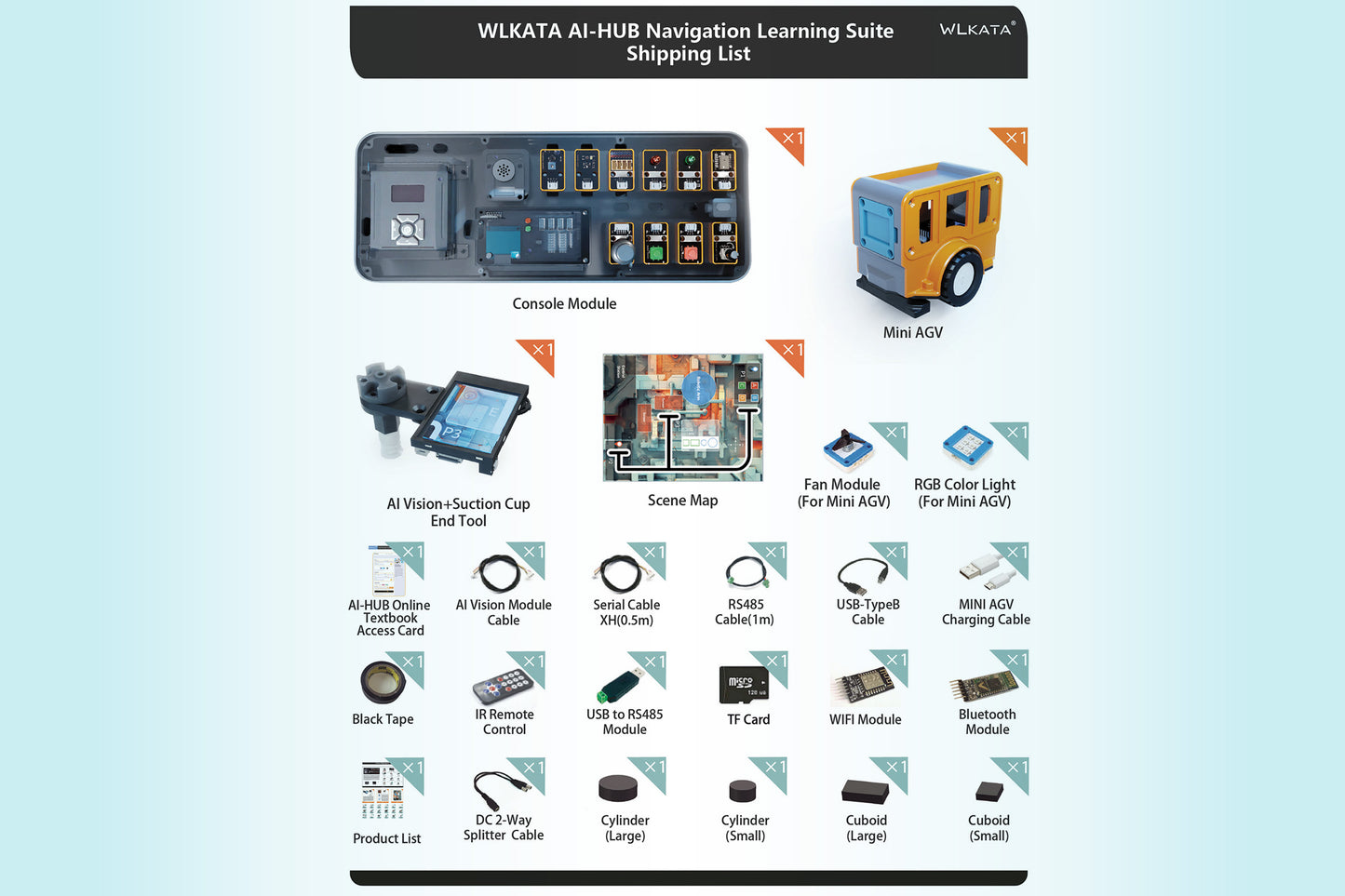

Shipping List:

1. AI-HUB Console Module X1

(includes: one development board (based on Arduino MEGA 2560 ), one multifunctional extender box for the robotic arm, one built-in air pump, one built-in AI voice speak control module (with offline language learning voice recognition sensor and voice announcement function), one infrared detection module, one color recognition module, one I2C expansion module, one green LED, one red LED, one gesture recognition module, one joystick control module, one green button, one red button, and one rotary potentiometer.

2. VisionGrip (AI Vision + Suction Cup End Tool) X 1

3. Mini AGV Set X1

(includes: one Mini AGV, one fan module, and one RGB color light module)

4. Scene Map X 1

5. AI-HUB Online Textbook Access Card X 1

(includes more than 15 detailed experiments with source code and videos for educators)

6. IR Remote Control X 1

7. USB to RS485 Module X 1

8. TF Card X 1

9. Wi-Fi Module X 1

10. Bluetooth Module X 1

11. Blocks Set X 1

(includes: one large cylinder, one small cylinder, one large cuboid, one small cuboid)

12. Cables Package X 1

(includes: one AI vision module cable, one serial cable XH(0.5m), one RS485 cable(1m), one USB-TypeC cable, one Mini AGV charging cable, and one DC 2-way splitter cable)

13. Product List X 1

Package:

Package Size: 375*335*290mm (15*14*12inch)

Package Weight: 6.0kg (13.0 lbs)

Brand: WLKATA

|AI-HUB| AI Navigation Learning Suite

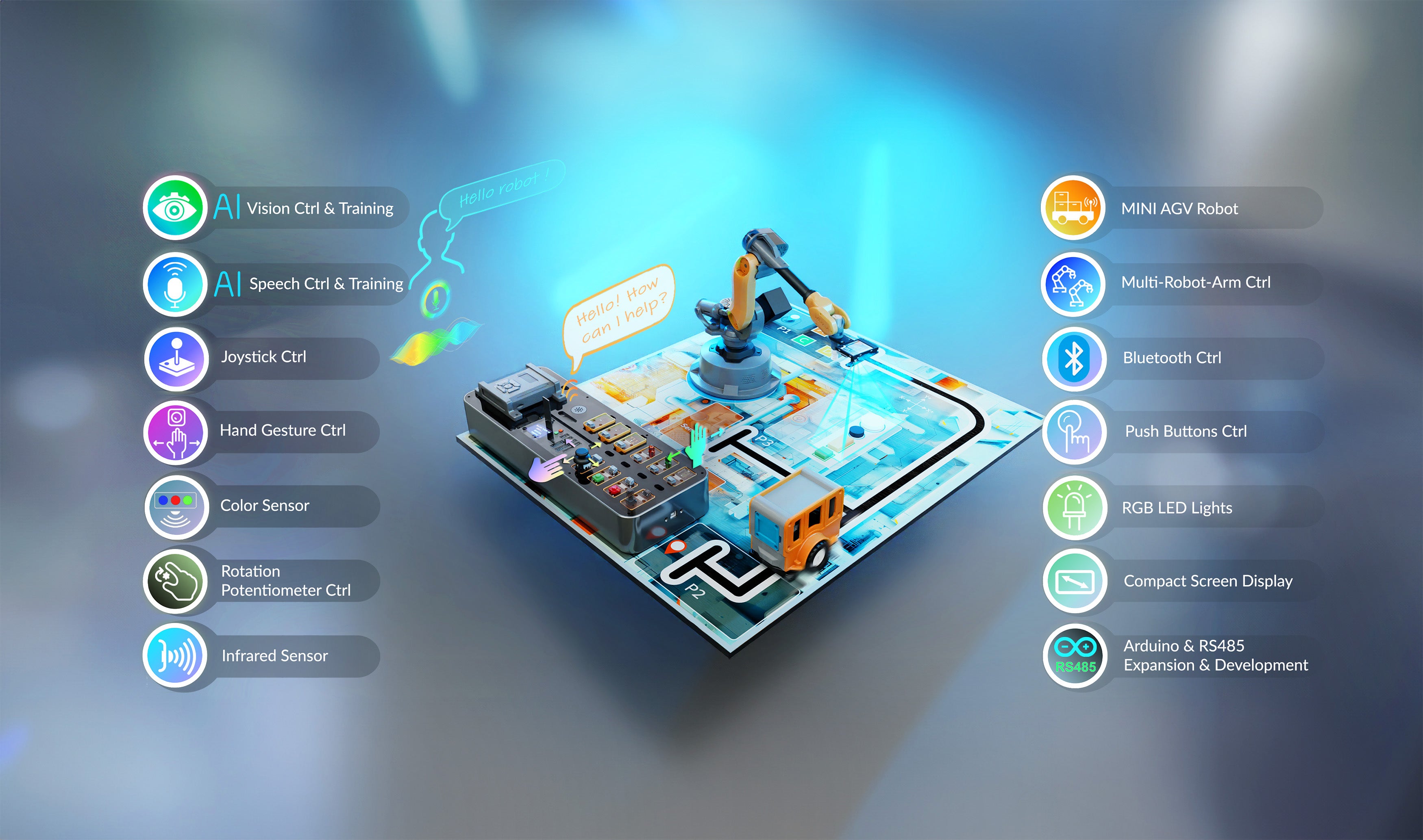

All-in-One AI and Automation Learning Solution

AI Vision, AI Voice, Gesture, Sensors, and More Robotic Control Methods in One Compact, Modular Suite Like Never Before!

AI-HUB Console Module

Allowing control WLKATA robotic arms with integrated AI vision, voice, gesture control technologies, and more in one compact module

AI-HUB Design Features

The ideal tool for students and educators seeking hands-on experience in Intelligent Robotics systems.

| Control Robotics with a Wave

Experience Gesture Control with AI-HUB

Effortlessly command robotic arms with just a wave of your hand, bringing a new level of interactive learning to AI and robotics education.

Learn More

| Unlimited Control

Manage any number of WLKATA robotic arms

✔️AI-HUB Console Module:

This compact module is the heart of your AI and robotics projects. Featuring an Arduino MEGA 2560-based development board, multifunctional extender, built-in air pump, and a suite of sensors and controls, it offers everything you need in one box.

.

✔️Universal Robotic Arm Control:

Connect and control any number of WLKATA robotic arms, from Mirobot to E4, MT4, and Haro. From single experiments to multi-arm setups, this suite offers the flexibility and power you need.

.

✔️Open-Source & Expandable:

The WLKATA AI-HUB Navigation Learning Suite supports Arduino, RS485, Modbus, and more, making it fully adapting to your creative and technical needs.

| AI Vision & Autonomous Mobility

Includes AI Vision + Suction Tool for Precision, Plus Mini AGV for Autonomous Navigation

🚃AI Vision + Suction Cup End Tool:

Allowing recognize colors and interact with objects with precision.

.

🚃Mini AGV Set:

Bring your desktop to life with the Mini AGV, fan, and RGB modules, as your robot navigates autonomously.

AI-HUB Universal Compatibility

Seamlessly connect and control multiple WLKATA robotic arms, including Mirobot, E4, MT4, and Haro

AI-HUB Educational Focus

Packed with educational content, ready to integrate into the classroom

Experiment Textbook

This product includes a comprehensive online textbook that covers the fundamentals of Arduino MEGA 2560, sensor integration, AI, and robotics programming applications. Designed for both beginners and teachers, the textbook features high-quality content, including instructional videos, to support learning and teaching.

Find the details in the Documentation below👇🏻

Digital Resource For Educators

To ensure users have everything they need to perform the textbook experiments, all essential materials are included with the product. These materials comprise printable maps, printable QR codes for experiments involving the vision module, Arduino source codes for all experiments, Blockly files (for WLKATA Blockfactory) for all experiments, and more, all integrated into the online textbook.

Find the details in the Documentation below👇🏻

Bringing Robotics and AI to High School Classrooms

AI-HUB Nav Suite - Client Project

Documentation

Everything you need to start

2 Software

For programming AI-HUB Navigation Learning Suite, and all WLKATA and Arduino products:

  • WLKATA BlockFactory

For robotic arm programming:

  • WLKATA Studio

|AI-HUB| Navigation Learning Suite Textbook

| Textbook Name: AI-HUB and Robotic Arms - Exploring Intelligent Robotics and Sensors with Arduino|

This textbook is offered free with the WLKATA |AI-HUB| Navigation Learning Suite (redeem with the code inside your product).

The textbook immerses young students (12 to 18 years old) in the exciting world of robotics and sensor technology. Packed with captivating content and hands-on activities, it's designed to ignite creativity, strengthen problem-solving skills, and build a robust foundation for future tech innovation.

  • Read free samples👉🏻
    (Tips: go to WLKATA Academy, register an account with an email and read the free sample chapters).

  • Featured Index:

    _Foundations:
    • Introduction
    • Functions of AI-HUB Components
    • MEGA 2560 Fundamental
    • Standard Reference (CSTA)
    _Sensors and Comprehensive Tutorials:
    • Capturing Digital Input with the Push Button
    • Controlling the LED Module with the Push Button
    • Reading Analog Values with the Rotary Potentiometer
    • Adjusting LED Module with the Rotary Potentiometer
    • Sensing the World with the Six-Axis Gyroscope
    • Controlling Directions with the Two-Axis Joystick
    • Detecting Colors with the Color Sensor
    • Controlling External Devices with the Relay
    • Standard Reference (CSTA)
    _MEGA 2560 and Robotic Arm Tutorials:
    • Robotic Arm Control (Homing)
    • Robotic Arms Status Query
    • Robotic Arm Angle Mode Movement
    • Robotic Arm Coordinate Mode Movement
    • Robotic Arm End Tools
    • Robotic Arm File Saving Execution
    • Robotic Arm G-code Instructions
    • Two Robotic Arms with RS485 Communication
    • Standard Reference (CSTA)
    _ Complete Demo Program:
    • Color Recognition
    • Manual Control
    • Voice Control
    • Gesture Control
    • Mini AGV Control
    • Robotic Arm + Mini AGV Integrated Control
    • Visual Recognition of AprilTag Labels
