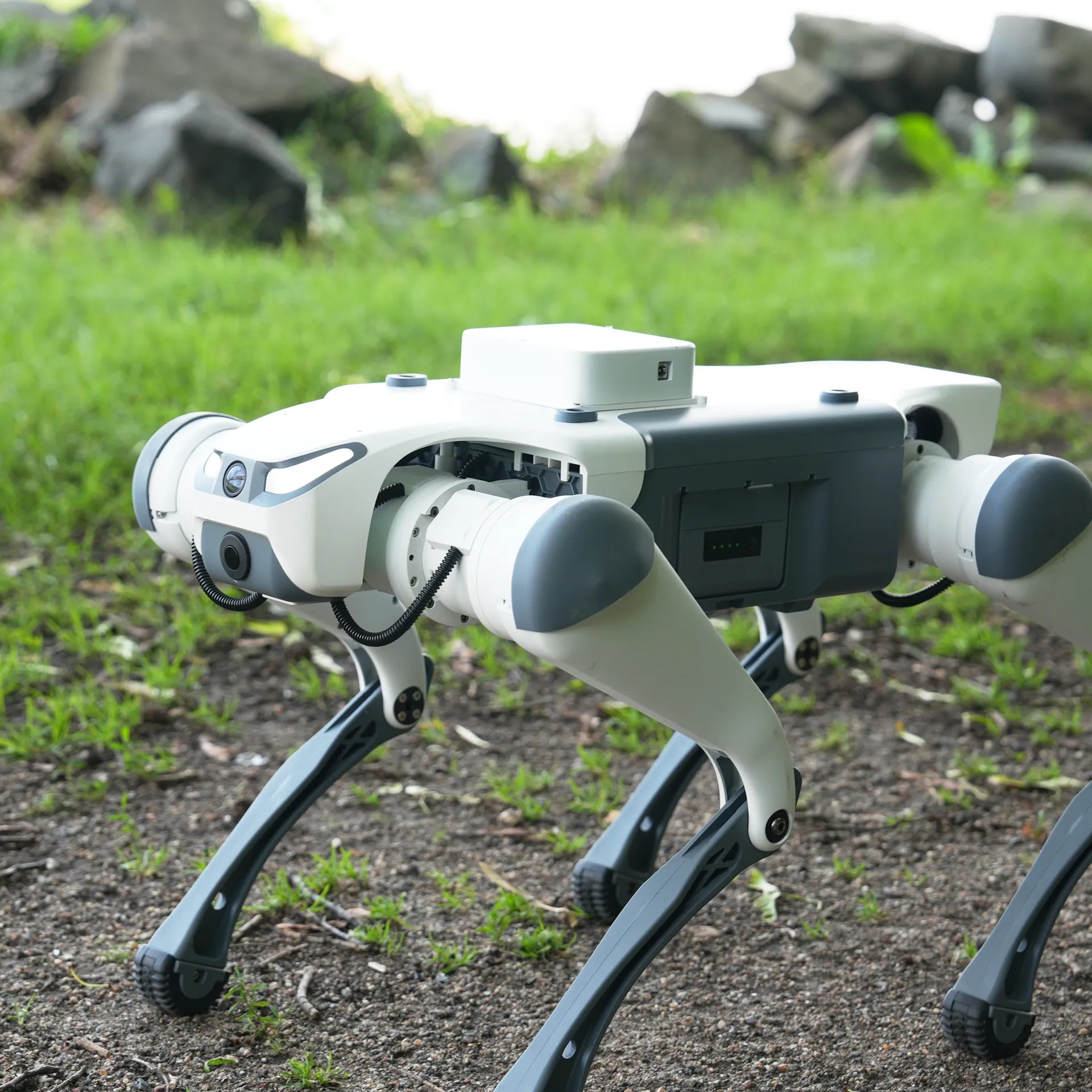

WLKATA March X

Pro LiDAR Kit

barcode

SKU:

WL-MarchX-Pro-LiDAR-NX35R

Brand:

WLKATA

LiDAR Perception

MULTI-LINE 3D MAPPING

Autonomy Ready

SLAM NAVIGATION

Open SDK

ROS1 / ROS2 Full API

QUADRUPED ROBOT LIDAR KIT · MULTI-SENSOR PERCEPTION · AUTONOMOUS NAVIGATION

The advanced LiDAR-enabled perception kit designed for robotics research and real-world deployment. Multi-modal sensing with LiDAR + RGB-D cameras, open SDK for ROS-based development, and ready-to-use SLAM and navigation capabilities—built for autonomy, mapping, and intelligent mobility.

Starting at

$26,090.00

USD

AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen
AI Automatic Sorting Cell (Mirobot)| Touch Screen

IN STOCK — SHIPS WORLDWIDE

AI Automatic Sorting Cell (Mirobot)| Touch Screen

$9,021.00

Configuration

Quantity

shopping-cart-simple

Add to Cart

truck

Free Shipping

shield-check

1-Year Warranty

headset

Expert Support

INTELLIGENT NAVIGATION

Extraordinary locomotion

Modify with your imagination

The WLKATA March X Pro LiDAR Kit marks a breakthrough in autonomous robotic navigation — combining real-time LiDAR mapping, AI-driven obstacle avoidance, and ultra-precise motion control to operate flawlessly in the most demanding industrial environments.

INTELLIGENT NAVIGATION

Extraordinary locomotion

Modify with your imagination

The WLKATA March X Pro LiDAR Kit marks a breakthrough in autonomous robotic navigation — combining real-time LiDAR mapping, AI-driven obstacle avoidance, and ultra-precise motion control to operate flawlessly in the most demanding industrial environments.

01 — PERCEPTION

360° LiDAR Sensing

Real-time 3D environmental mapping powered by industry-leading LiDAR precision. Detect obstacles, capture spatial geometry, and maintain full situational awareness across every axis — even in low-light or visually complex spaces.

02 — INTELLIGENCE

AI-Powered Navigation

NVIDIA Jetson Xavier NX with Ubuntu and ROS allows users to develop and train their own AI models, making the robot adaptable to various tasks and environments. Onboard AI algorithms process sensor data in real time to plan optimal paths, anticipate obstacles, and adapt to dynamic environments autonomously.

03 — MOBILITY

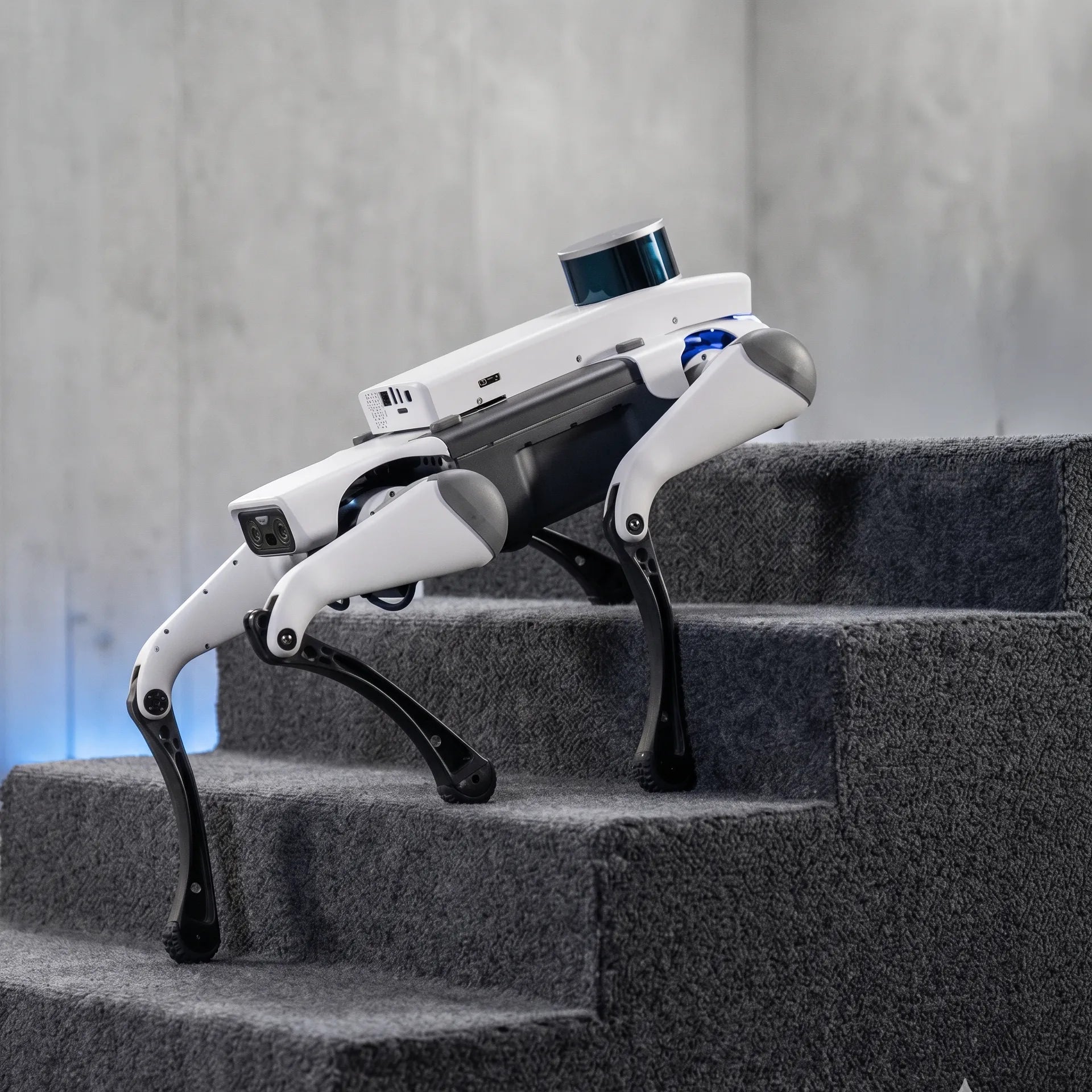

Robust Multi-Terrain Mobility

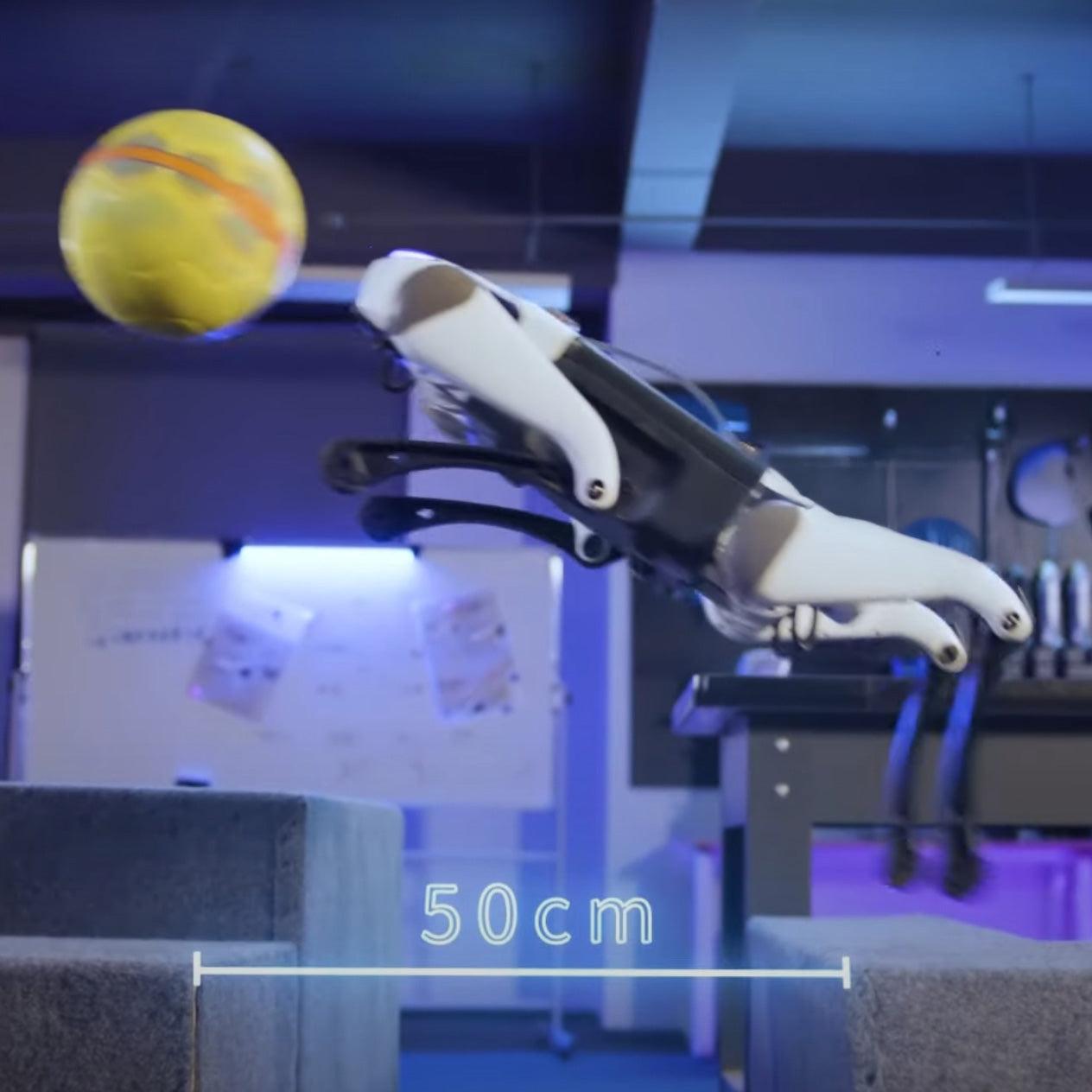

Engineered joint systems deliver stable, confident locomotion across uneven, sloped, and challenging terrain. Advanced gait control minimizes drift and maintains balance, letting the platform operate where wheeled systems can't.

04 — Remote Controll

Real-Time Video & Motion Control

Take command with an intuitive remote controller featuring real-time video streaming from the robot’s onboard camera—see exactly what the robot sees, instantly. Control movement with precision, such as walking, running, turning, and jumping, all with responsive, low-latency performance.

05 — INTEGRATION

Seamless Integration

An open SDK and modular hardware interface make deployment effortless. Plug into existing workflows, robotics stacks, or research platforms — and start building, customizing, and scaling without friction.

Key SPECS

Key Specifications & Shipping Content

arrow-down

See full specifications at the bottom of the page.

ruler

PHYSICAL

Weight (with Battery)

13.7kg / 30.2LB

Dimensions (Standing)

24 × 14.5 × 15.7 in (610 × 370 × 406 mm)

lightning

PERFORMANCE

No-load Duration

1.5 h ~ 2 h

Range

5 km

Load Capacity (Continuous Walking)

7.5 kg

scan

SENSING & CONTROL

Wide-angle Camera

Horizontal FOV 130°, 1920×1080 @ 30 fps

Ultrasonic Radar

2 Sets (Built-in)

Front Light

Built-in

Remote Control

Included

Auto-stop / People Tracking

Front & Rear

Obstacle Avoidance

Yes

cpu

COMPUTE & PLATFORM

Interface Extension Module

Pre-installed on top of robot's back

Depth Camera

Intel RealSense D435i

Onboard Computing

NVIDIA Jetson Xavier NX (Ubuntu) with built-in ROS

LiDAR

16 Lines, Detection Distance 100 m @ 10%, 150 m @ 70%

Development Support

Simulation Model, SDK, API, Demo, Perception Interface, Documentation

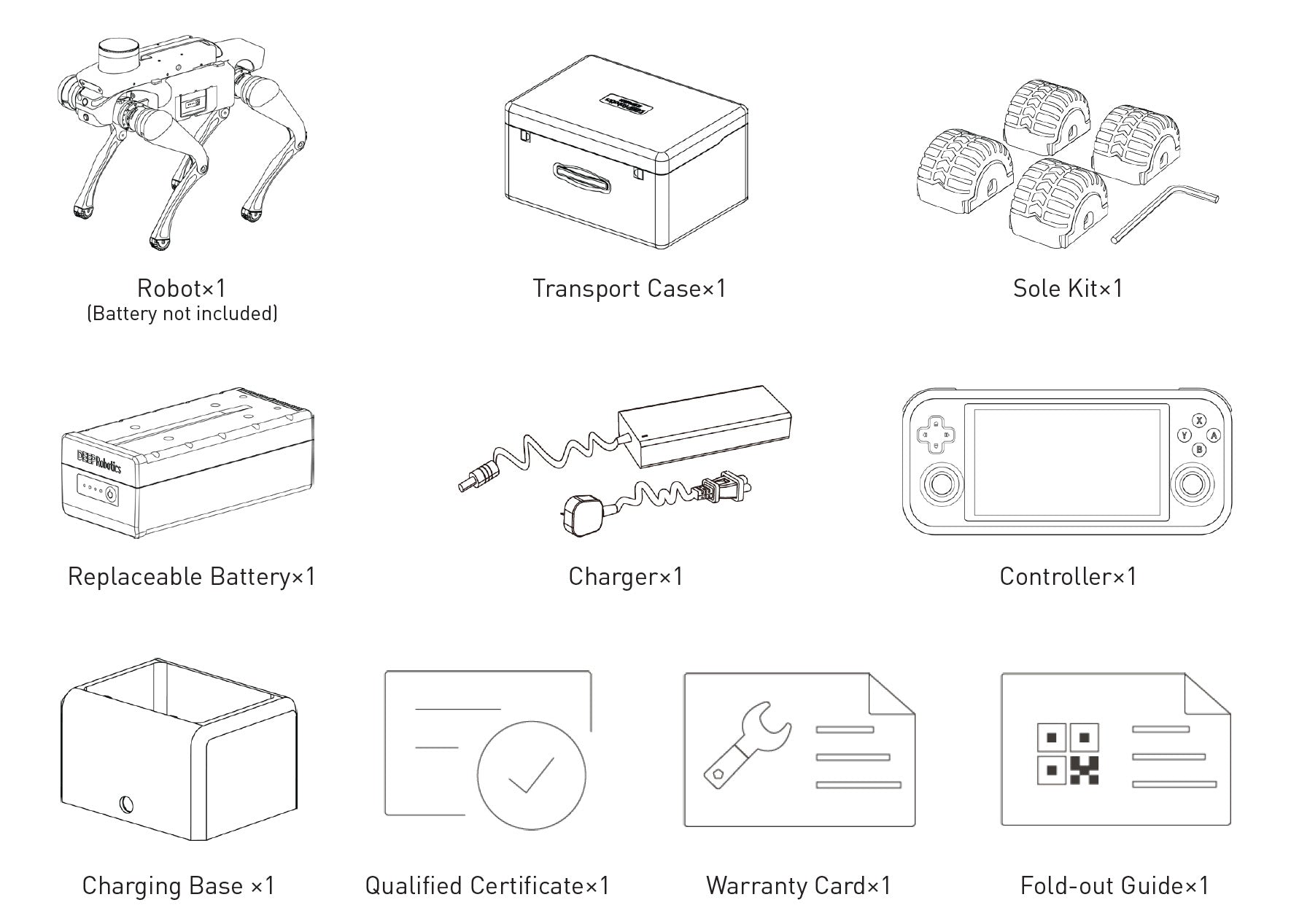

01

Robot × 1

Core quadruped robotic platform with advanced mobility and onboard computing.

02

Transport Case × 1

Rugged protective case for safe storage and easy transportation.

03

Sole Kit × 1

Modular foot-end components for different terrains and use cases.

04

Replaceable Battery × 1

Hot-swappable battery for extended operation and minimal downtime.

05

Charger × 1

High-efficiency charging unit for quick and reliable power replenishment.

06

Charging Base × 1

Convenient docking solution for stable and safe charging.

07

Interface Extension Module × 1

Expandable I/O module for integrating sensors, peripherals, and custom hardware.

08

Depth Camera × 1

High-precision RGB-D camera for perception, obstacle detection, and mapping.

09

LiDAR × 1

Advanced 3D LiDAR sensor for real-time environment scanning and SLAM.

10

User Manual × 1

Comprehensive guide to setup, operation, and development.

March X AVAILABLE NOW

Maximize your efficiency with the WLKATA March X Pro LiDAR Kit.

Available now. Engineered for the demands of tomorrow.
